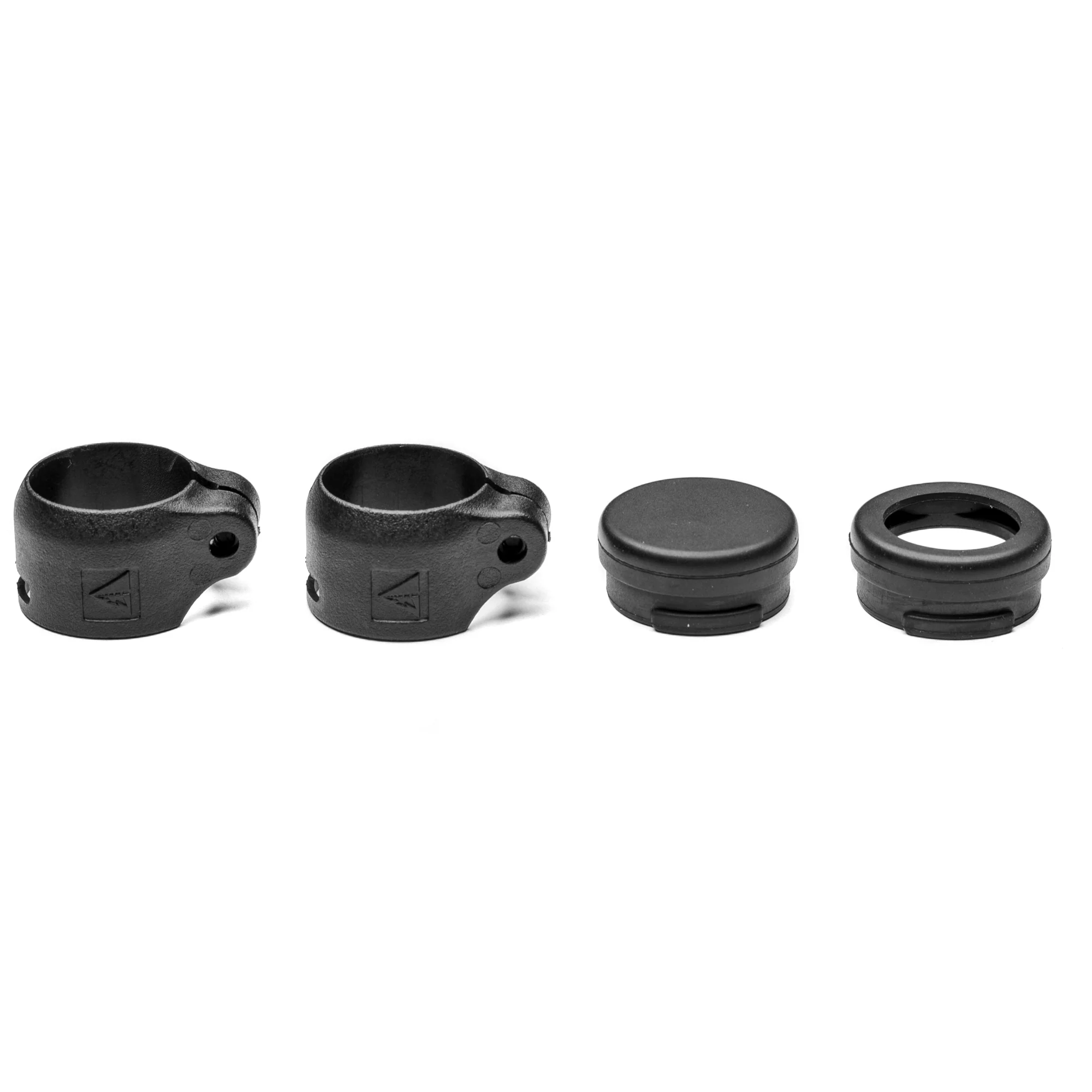

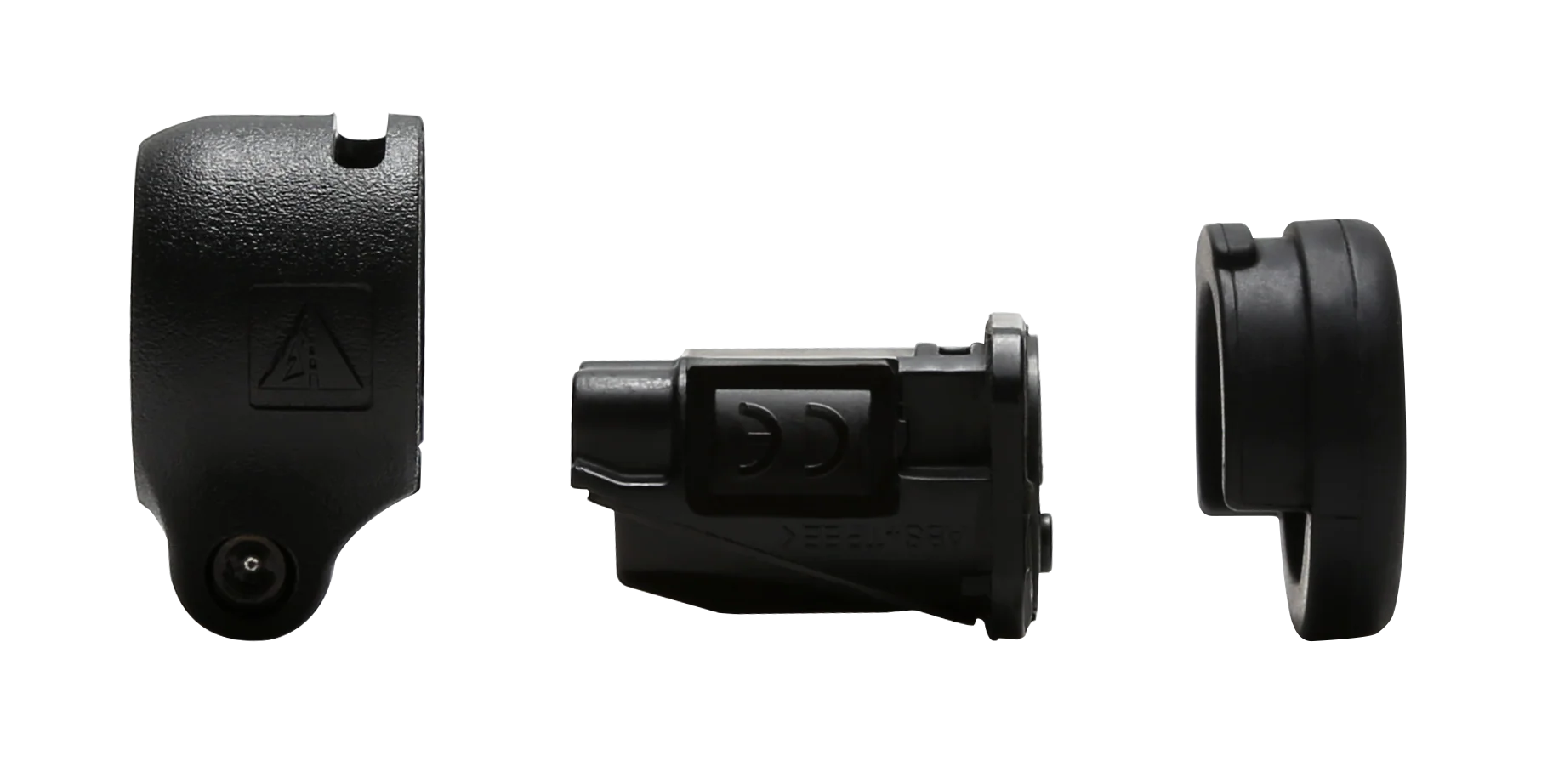

The Aeroport RS910 adapter fits the BTR2 internal battery and Aeroport RS910 bar end junction into the rear of a set of aluminum series extensions or 35c+ extension. This makes battery placement and cable routing through the frame easier and more secure. As well as avoiding the need for an unsightly mess of cables as typically seen with an EW junction box, or the inconvenience of hiding the junction box in the stem or frame.

Compatibility

The adapter is only compatible with 22.2mm OD aluminum series extensions, SLC extensions and 35c+ carbon extension at this stage, with an ID of 19.4mm. It is designed to fit the following Di2 parts: RS910 Junction box, BTR2 Internal battery, SD50 cables ** Di2 parts are not included with the adaptor. ** Note that the adapter will not fit in an aerobar like the Profile Design Aeria Evo as the rear of the extension is not accessible

Tech Specs

Construction: Injected nylon/glass fiber
Clamp Compatibility: 22.2mm OD / 19.4mm ID
Extension Compatibility: Aluminum Series Extensions, SLC Carbon Extensions and 35c+ Carbon Extensions

Tech Guide

Torque settings (all bolts are M3 x 8mm)

1.5Nm (13in lbf)

Weight

Total: 16g

Manual

Aeroport Installation Instructions

ACCESSORIES

Aeroport - Di2 RS910 Adapter
